Malware of the Day – Understanding C2 Beacons – Part 2 of 2

Introduction

As a teacher of mine was fond of saying, “In science, you seek the ideal, but often encounter the real.” In our previous article, we postulated ‘the ideal’ based on first principles. We predicted how Command and Control (C2) beacons would appear in AC-Hunter and how this appearance might change as we altered delay, jitter, and introduced multiple redirectors with different host rotation strategies.

This follow-up article delves into ‘the real.’ We’ve conducted extensive simulated compromises mirroring all the C2 beaconing setups discussed in the previous post, and so today we’ll compare our findings from AC-Hunter to those predictions.

Before we proceed, please note the following two important points:

1. As the title suggests, this is the second in a two-part series. While it holds value on its own, we strongly recommend first reading the preceding article to fully benefit from the content.

2. We’re pleased to share that datasets for all nine attack simulations presented here are available at the bottom of this page. We encourage you to follow along in AC-Hunter to gain direct experience in observing compromises firsthand. This also presents an excellent opportunity to explore various C2 beacons in our newest version of RITA (version 5), which you can download here.

It’s our sincere desire that these two articles will help you develop keen insight into not only the appearance of C2 beacons in AC-Hunter/RITA, but how the appearance might change in response to varying key factors. Ultimately, we believe that this skill will help you recognize a wider variety of attacks so that you are empowered to keep your organization safe against them.



Quick Recap

Before diving into our results, let’s quickly recap some key concepts from our previous article that are critical to interpret this article’s findings.

As discussed before, most modern C2 frameworks allow for a beacon/implant (essentially a C2 client) in which both delay and jitter can be set. In Cobalt Strike, the framework we’ve used to generate today’s data, we can specify the delay in seconds and jitter as a percentage. This percentage is then subtracted from the delay to create our expected histogram range.

Consequently, a C2 beacon with delay and jitter will produce a histogram containing three important values:

1. The minimum range value
2. The maximum range value
3. The mode, which represents the peak of the histogram

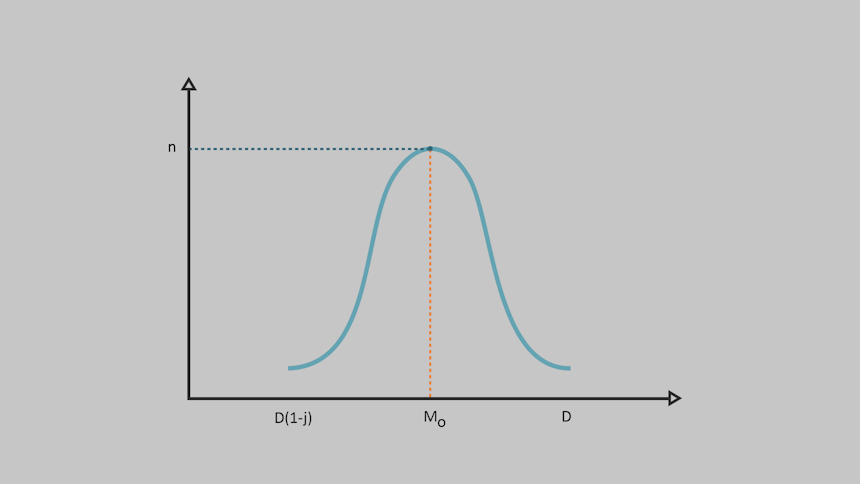

All three of these values are illustrated in Image 1 below.



As shown in the image, the histogram’s maximum value is equal to D (the delay), while the minimum value can be calculated as the delay minus the product of delay and jitter (as a fraction). Mathematically, we can express this minimum value as D – Dj, which can be rewritten as D(1-j).

Furthermore, we see that the highest point on our histogram is represented by the symbol Mo. If Mo is exactly halfway between D and D(1-j), its value can be expressed as D – (Dj/2), which can be rewritten as (D(2-j))/2.

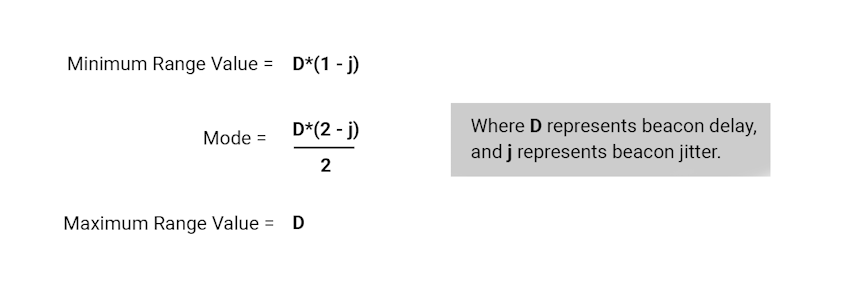

To recap, our minimum range value, maximum range value, and mode can be determined using the following formulas:



Finally, it’s important to note that in AC-Hunter, all values on the X-axis are reported as whole, positive integers: 0, 1, 2, 3, 4, etc. In reality, network connections don’t conform to this precise timing and can occur in fractions of a second. To address this, AC-Hunter truncates these numbers, rounding them down. For example, a 2.2-second interval is considered 2 seconds, and a 4.8-second interval is considered 4 seconds. We will account for this rounding in the final step of our calculations to ensure our predictions align with AC-Hunter’s display format.

And with all that, let’s dig into our results.



Base Histogram

Our first dataset will serve as the baseline (i.e. “departure point”) for all other sets. For this we are using a delay (D) of 30 seconds, and jitter of 25%.

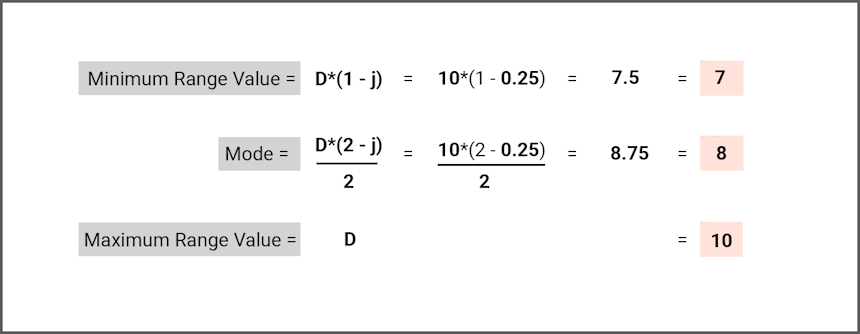

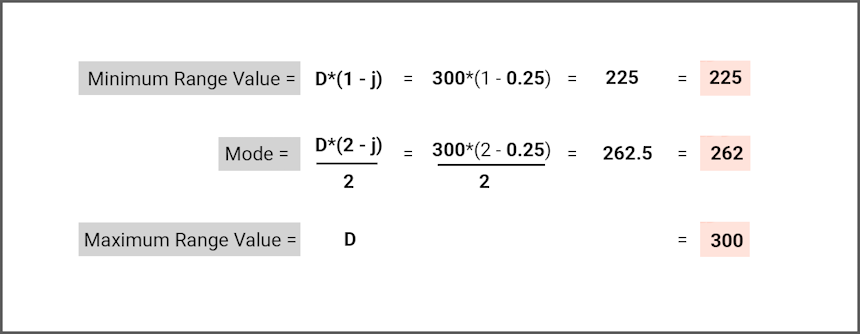

We’d thus expect our histogram values to be:



So now that we have some idea of what to expect, let’s check in and have a look at our results from AC-Hunter – see Image 2 below.



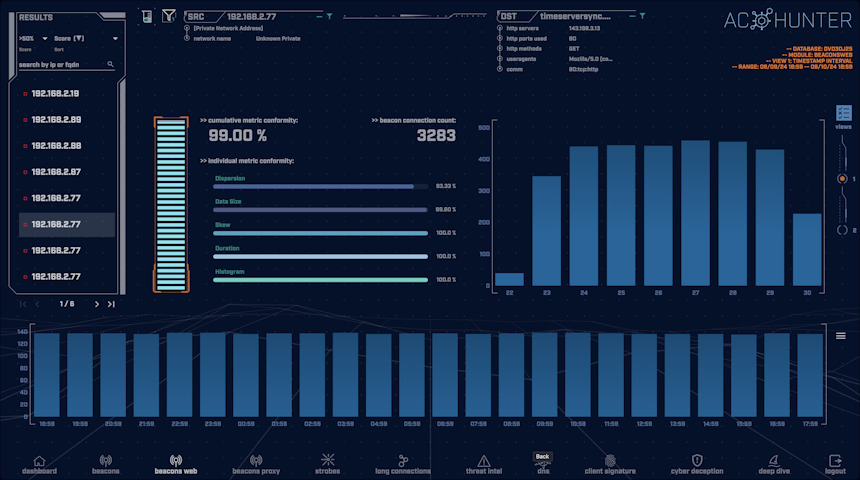

For now, let’s pay attention only to the histogram shown in the top right – see Image 3 below.



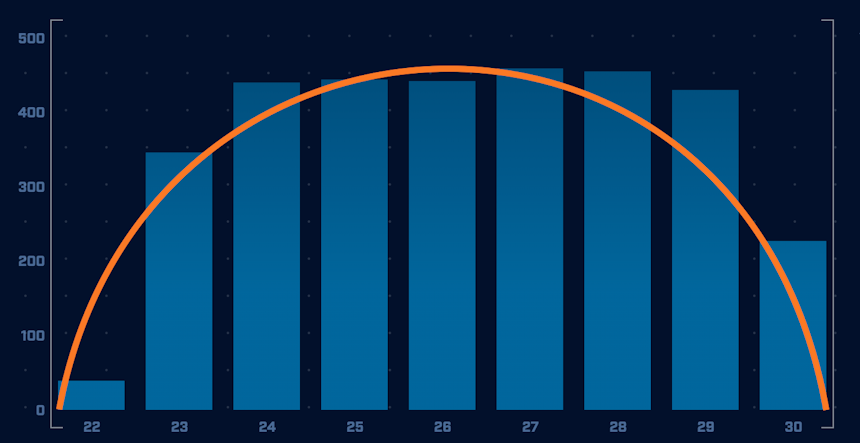

Upon closer inspection, we can see that our histogram indeed aligns with our expected values – with our minimum value at 22, maximum value at 30, and mode at 26. Note that we overlaid the bell curve trendline (in orange) to emphasize that, while our histogram largely conforms to this ideal, reality is often a little messier.

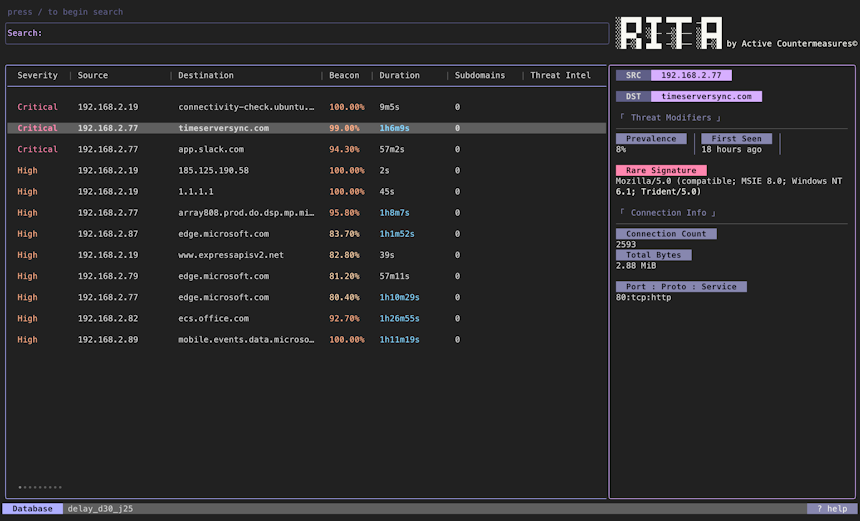

Let’s also have a quick look at our results in RITA – see Image 4 below.



Our connection was successfully categorized as Critical (1 of only 3) among approximately 100 different connections. It also received the Rare Signature modifier. For HTTP connections, RITA compares the user agent string to those used in all other connections. Since this was the only connection using this specific user agent (Mozilla/5.0 (compatible; MSIE 8.0; Windows NT 6.1; Trident/5.0), RITA applied the Rare Signature modifier.

This modifier should always interest threat hunters, as attackers may struggle to predict user agents on target systems without extensive reconnaissance. Many attackers are often careless when assigning user agents in C2 configs, as few defensive tools besides RITA and AC-Hunter report unique uses like this.

Note however that, as is almost always the case, this is not in and of itself indicative of a compromise. Misconfigurations, employee violations, or hosts with specialized applications communicating to a single external host can also trigger this modifier.

Now that we’ve got a good feeling for our baseline dataset, let’s have a look at what happens when we vary our delay.



Decreased Delay

In our second dataset we’ve kept our jitter (j) fixed at 25% while decreasing our delay (D) to 10 seconds.

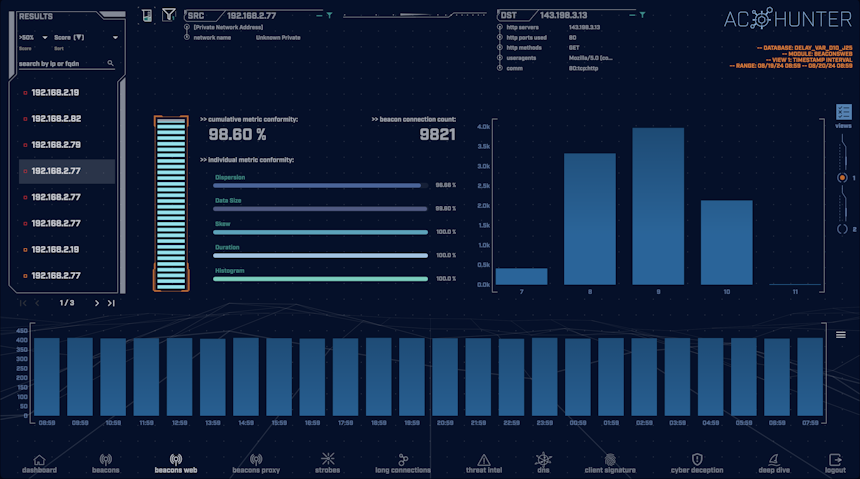

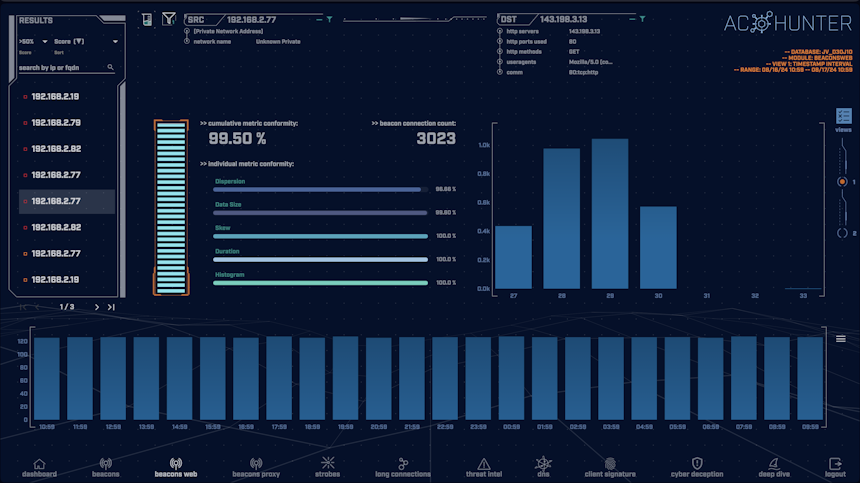

Let’s once again compare this to our results from AC-Hunter – see Image 5 below.

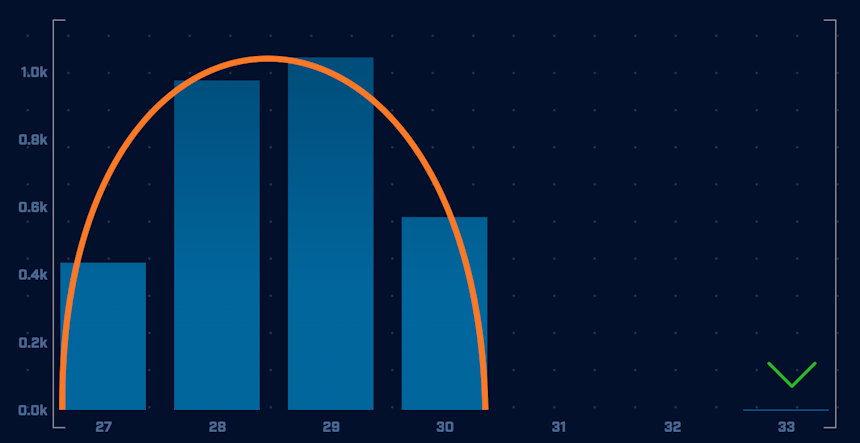

Let’s once again pay closer attention to our histogram – see Image 6 below.



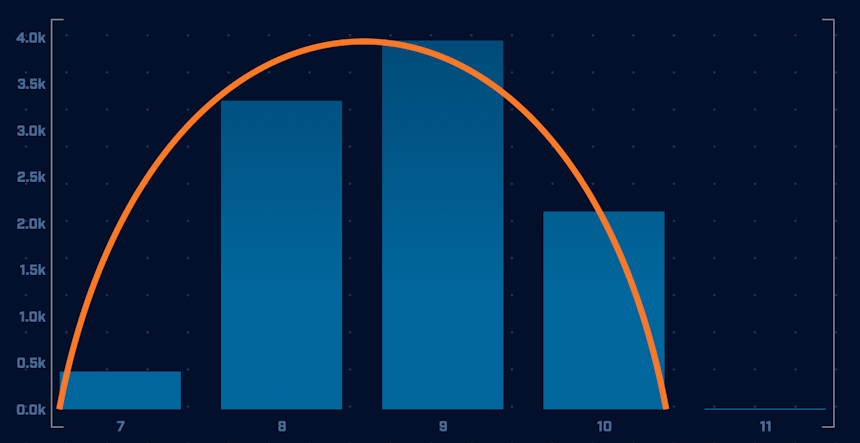

Again, our values more-or-less align with what we predicted using our formulas. Further, our entire histogram has shifted to the left, just as we predicted. Though the scale of the graph changed, we can confirm that whereas before our maximum range value (i.e. delay) was at 30, it’s now at 10.

Now let’s turn our attention to what happens when we increase our delay.



Increased Delay

In our third dataset we’ve once again kept our jitter (j) fixed at 25%, while this time increasing our delay (D) to 300 seconds.

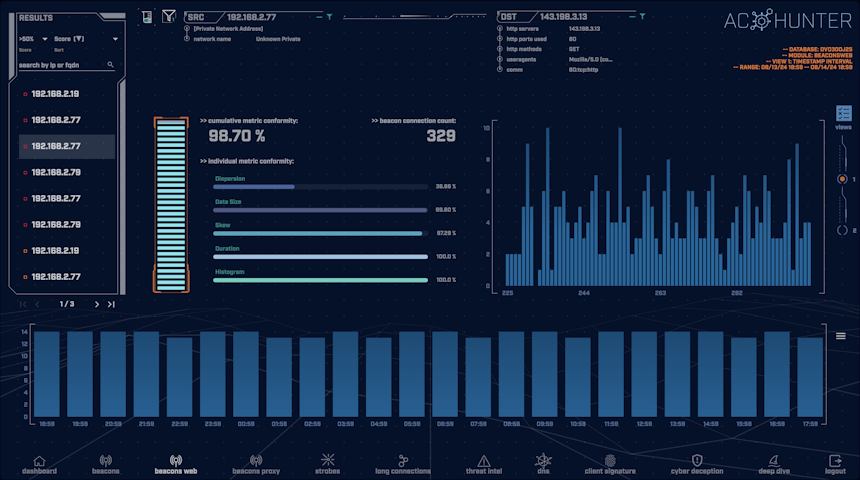

Let’s compare this to our results from AC-Hunter – see Image 7 below.

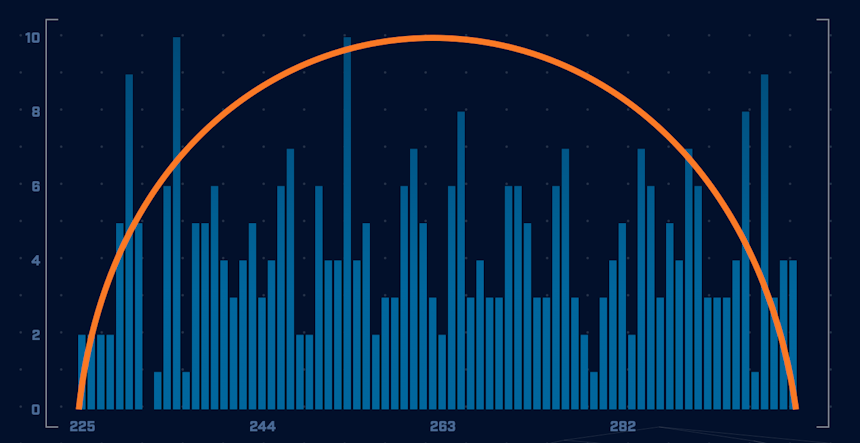

Let’s once again focus on our histogram – see Image 8 below.



Once again, as predicted our entire histogram has shifted to the right on the x-axis – our new maximum range value is now 300. However, even though our values all align with where we’d expect them to be, we can also see that the actual shape of our histogram has disintegrated. Our orange trend line no longer mirrors the results in any meaningful sense, and we can witness many localized peaks and valleys (i.e. noise). Any honest individual would be hard-pressed to call this a bell-curve.

It’s thus interesting to reflect that despite this, AC-Hunter still assigned a 100% histogram score to this dataset (Image 7, above). This is because, under the hood, RITA (and thus by proxy AC-Hunter) uses a form of data smoothing to minimize noise and focus on the overall trend.

What exactly is meant by data smoothing? Without veering too far off into the weeds, let’s see for example what happens if we take those same values from Image 8 (above), and apply a moving average smoothing technique, averaging every 10 consecutive values. In other words we recreate our graph by creating new data points that are an average of 10 neighboring data points. Doing so transforms our histogram to Image 9 (below).



As we can see, though the result by no means produced a “perfect” bell curve, we’ve ironed out localized peaks and valleys and the result better communicates the overall trend we are interested in. Data smoothing is thus used to help us avoid “mistaking the trees for forest”, especially when we are dealing with large ranges, as is the case here.

Now that we’ve investigated what happens when we vary our delay, let’s now turn our attention to what occurs when we instead alter jitter.



Decreased Jitter

In our fourth dataset we’ve kept delay (D) fixed at 30 seconds, while this time decreasing our jitter to 10%.



Let’s compare this to our results from AC-Hunter – see Image 10 below.



Once again let’s have a closer look at our histogram – see Image 11 below.



Overall our values align with our predictions, and if we compare this image with our baseline (image 3, above), we can indeed observe that the entire shape of our bell curve has changed. Our bell curve’s height has increased relative to its width, resulting in a “sharper” peak, just as we predicted it would in our previous post.

Something else that’s interesting is that we can observe a single outlier that took 33-seconds (see green arrow), well beyond our predicted range. Keep in mind that even though this beacon was configured to transmit network signals exactly within the range of 27 – 30 seconds, the actual transmission time can be affected by various external factors.

Once the packet is on the wire en route to the C2 server, a variety of factors such as network congestion, routing issues, or temporary outages along the transmission path can potentially delay its arrival. So the presence of these outliers on our histogram underscores the inherent variability in real-world network conditions, even when the sending mechanism is programmatically controlled.

Let’s now see what happens when we increase our jitter.



Increased Jitter

In our fifth dataset we’ve once again kept delay (D) fixed at 30 seconds, this time however jitter has increased to 99%, the maximum value.



Once again, let’s compare this to our results from AC-Hunter – see Image 12 below.

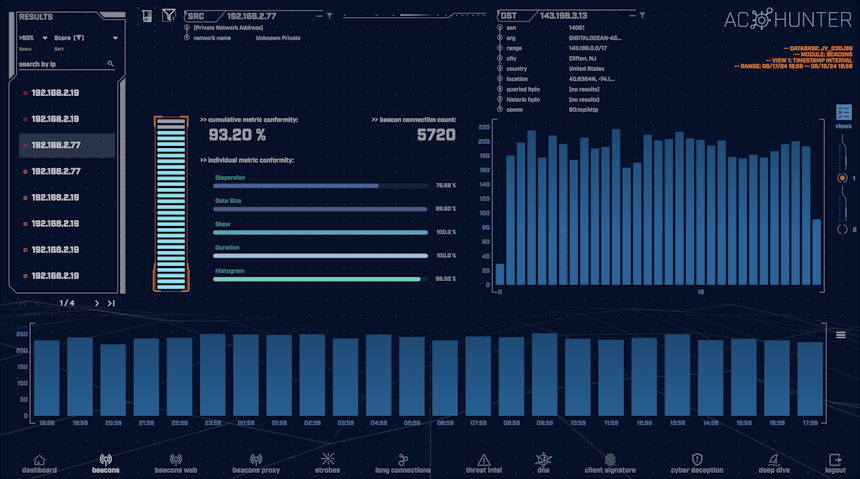

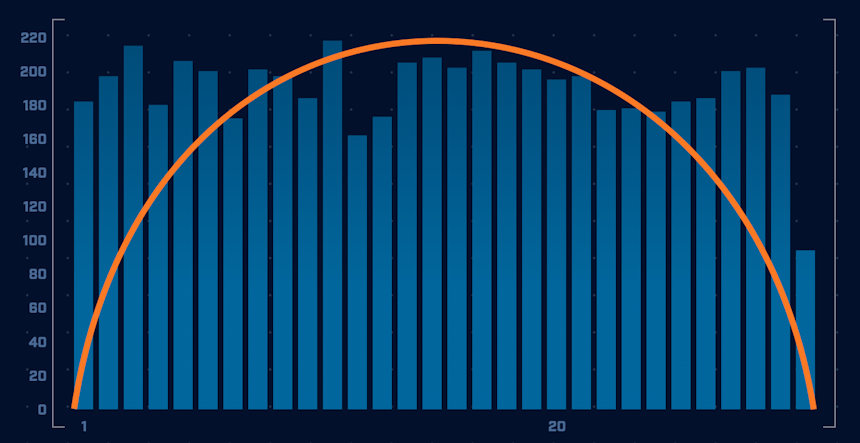

Let’s pay closer attention to our histogram – see Image 13 below.



Our expected values align nicely, however as was the case earlier, we can see that spreading our data out over a large range results in the histogram starting to lose its archetypal bell curve shape. Now of course we could once again attempt to apply a data smoothing technique to see if we could tease the shape out – this time however we’ll leave it up to the reader to attempt this on their own if they so desire.

Finally, let’s see what happens in the case that no jitter is being used.



No Jitter

In this dataset we’ve once again kept delay (D) fixed at 30 seconds, however this time no jitter was applied. As a result we expect our minimum range, maximum range, and mode to all converge on a single point at exactly 30 seconds.

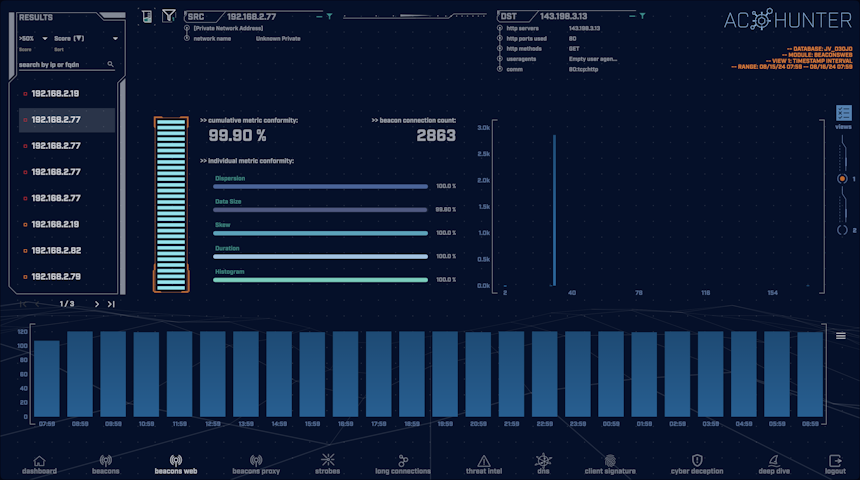

Let’s jump into AC-Hunter to see if this is indeed the case – see Image 14 below.

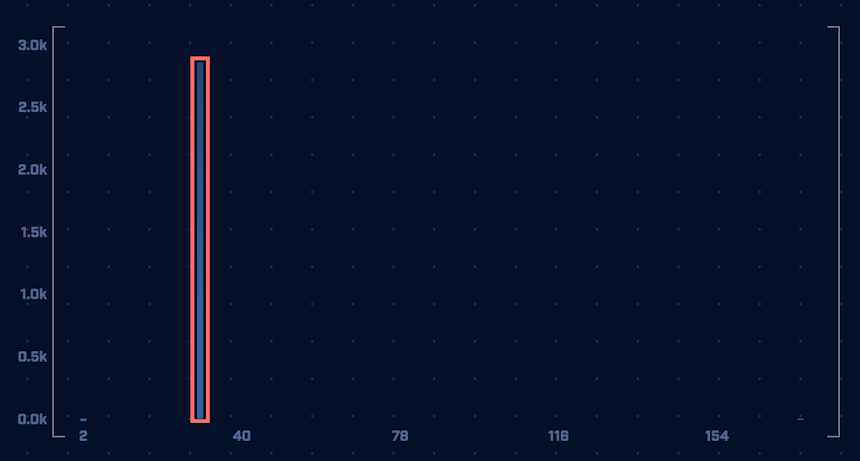

And below in Image 15 we can see our histogram in greater detail.



As expected, practically all the connections are at exactly 30 seconds. In fact, out of a predicted 2880 connections (24 hr/30 sec), a total of 2859 connections were observed at this interval – a fidelity rate of 99.27%. We also see 3 outliers here – 1 at 2 seconds, 1 at 28, and then a straggler at 174 seconds – again underscoring the impact of external factors.

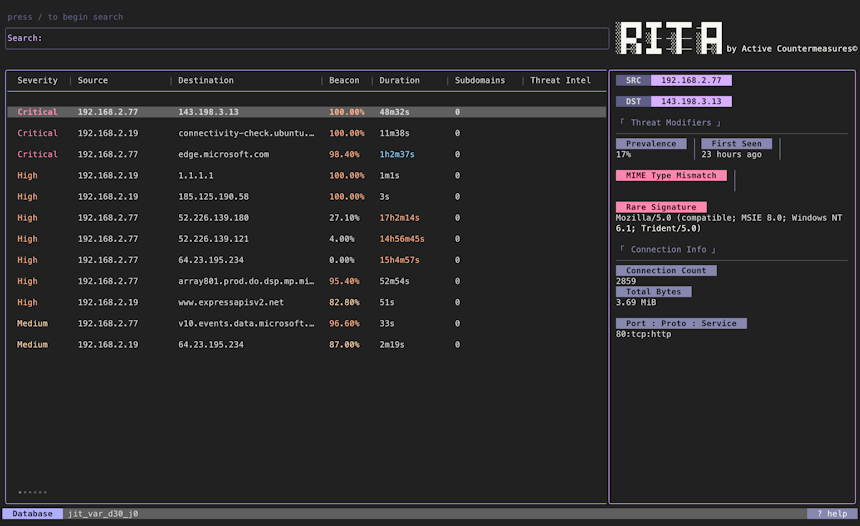

Let’s dip back into RITA and look at the results for this connection – Image 16, below.



RITA once again correctly identified this connection as Critical. In addition to the Rare Signature modifier, RITA has now labeled it as having a MIME Type Mismatch.

A MIME type mismatch occurs when there’s a discrepancy between the declared content type and the actual data in an HTTP/HTTPS response. Typically, when you request data via HTTP/HTTPS, the server responds with the requested data in the message body and includes a ‘Content-Type’ field in the response headers specifying the MIME type of the data.

In simpler terms, the server provides both the requested data (in the body) and a description of the data type (in the header). Generally, we expect these to match. However, when they don’t – for example, if the body contains JSON data but the header’s ‘Content-Type’ field reports it as image/jpeg – it’s known as a MIME type mismatch.

While often attributed to misconfigurations, MIME type mismatches can sometimes indicate potentially malicious activity. In C2 scenarios specifically, a server might send encoded executable content while declaring it as harmless plain text.

Let’s jump into the traffic capture of this dataset to see if we can locate the offending packet using WireShark – see image 17 below.



We can see here that the HTTP response (originating from the C2 server) indicates the content of the packet body to be text/plain (green rectangle) in the header. However, while the body contains some form of encoded data, RITA actually compares the path extension to the Content-Type. In this case, our path has no extension (/bbbbbbbbbb), which is not what we would expect if it were indeed text/plain. Consequently, RITA has concluded that this must be a MIME Type Mismatch.

This discrepancy between the declared content type and the actual path structure raises a red flag, as legitimate text/plain content typically includes appropriate file extensions. The lack of an extension, combined with encoded data in the body, further reinforces the suspicion of potential malicious activity or, at the very least, an unusual server configuration.

And that’s it for varying our jitter. Let’s now have a look at the results from using two redirectors, starting with the round robin host rotation strategy.



Round Robin Host Rotation Strategy

We’re once again simulating a departure from our baseline case, that’s to say where our beacon has a delay of 30 seconds, with a jitter of 25%. In our previous post, we predicted that using two redirectors with the round robin rotation strategy would result in a beacon that looked similar to one with double the delay, that is to say 60 seconds.

If this was the case we’d expect our resulting histogram values to be:



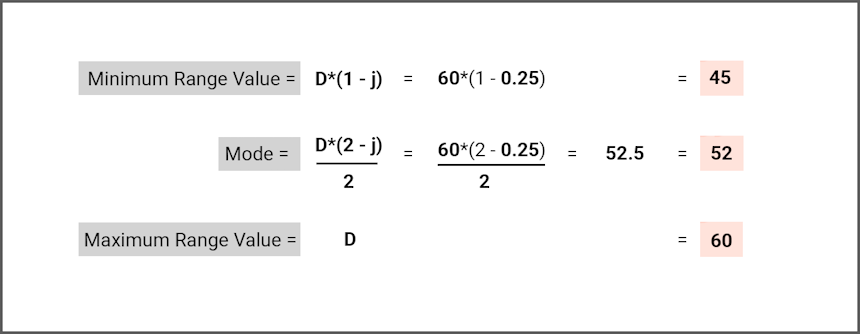

So let’s see how well this lines up with our results in AC-Hunter – see Image 18 below.



Once again let’s take a closer look at our histogram – see Image 19 below.



Our values align well with our prediction – when we use two directors with the round robin host rotation strategy it is indeed as if the delay was doubled for a single redirector. The round robin host rotation strategy thus does little in the way of altering the shape of our histogram.

This is however not the case when we change the rotation strategy from round robin to random.



Random Host Rotation Strategy

In the previous article we predicted that using multiple redirectors with a random host rotation strategy would create an asymmetrical histogram according to the “coin flip model”. We expect it to show positive skew (“a long tail”), with actual connections appearing at multiples of the delay, in this case 30 seconds.

Let’s have a look at the result from AC-Hunter – Image 20, below.



Let’s pay closer attention to the histogram on – Image 21, below.



Connection intervals closely correspond to multiples of our delay at 30, 58, 90, 118, 150 seconds, and so on. The frequency of occurrence approximately halves for each subsequent interval, aligning with our ‘coin flip model’ prediction.

Finally, let’s also see what would happen if we introduced some jitter (25%) into this exact same setup – see Image 22, below.



And let’s zoom in on our histogram one final time – Image 23, below.



The histogram maintains its overall positive skew while becoming more filled out. Instead of individual connection bars at multiples of our delay, we now observe small clusters. The graph has taken on a fractal-like quality, with ‘mini’ bell curves appearing at delay multiples. The amplitude of these curves approximately halves for each subsequent cluster, and as with our symmetrical histograms, the maximum range value of each cluster aligns with multiples of the delay.



Conclusion

In today’s Malware of the Day post, we concluded our in-depth exploration of C2 beacons, their fundamental properties, and how varying those properties affect their appearance in AC-Hunter by validating our previous hypotheses with real-world data.

Specifically, we examined data from AC-Hunter, and in some cases RITA, when we:

• Varied the beacon delay (D)
• Varied beacon jitter (j)
• Applied the round robin host rotation strategy with 2 redirectors
• Applied the random host rotation strategy with 2 redirectors



Overall, our predictions held up – we could accurately predict our minimum range, maximum range, and mode values using the formulas we developed. We observed that specific changes in properties led to predictable outcomes in our graphs.

However, as is often the case when “the ideal” meets “the real”, we saw that reality can sometimes be a bit messier than our paper-bound predictions. For instance, when our connections are spread out over a large range, the ideal bell curve shape begins to disintegrate. Additionally, some outliers are occasionally seen due to the influence of external factors beyond our control. Regardless, being aware of these due to some first-hand experience will help us recognize it, ensuring it does little to impede our threat hunting efforts.

We encourage you to not only download the data provided below and explore these attacks yourself, but also generate your own unique datasets by performing simulations with distinct properties. Use what you’ve learned here to make predictions and then see if you can more easily identify the attacks in AC-Hunter based on them. Ultimate mastery results from applying what you’ve learned to suit your own unique needs.

We hope this two-part series has helped you gain further insight into the fundamental workings of C2 beacons, and more importantly, what you can expect them to look like in AC-Hunter based on a wide range of potential properties. We will continue our mission of helping you become proficient at harnessing the full potential of AC-Hunter, ultimately helping protect your organization against these types of attacks. We’re grateful to be on this journey together to ensure your organization remains safe and secure.
